Timed Event Sequence Configuration

This configuration allows you to trigger a follow‑up event only if it occurs within a specific time window after an initial event. Follow these steps to set it up:

Access the Configuration Page

Open your AXIS camera’s web interface:
Navigate to the camera’s IP address using your preferred web browser.
Go to the APP Section:
In the web interface, locate and click on the APP section.
Enable Timed Event Sequence:
Find Missing Feature ACAP, open it, and enable the Timed Event Sequence from the feature list. This will launch its configuration panel.

Configure the Timed Event Sequence

Name:
Enter the name that will appear in AXIS rule conditions.
Seconds:
Set the maximum interval (in seconds) between the initial event and the follow‑up event before the condition times out.
Hold Time (ms):
Specify how long the generated event remains active after it’s triggered.
Only One Instance:
Enable this option to ensure that only one timer can run at a time—preventing new events from overlapping with an already active event.
Initial Trigger:
Choose the event that will trigger the start of the sequence.
Follow-up Trigger:
Select the event that must occur within the configured timeframe (in seconds) to complete the sequence.

Save the Configuration

Save:
Once you have entered all required settings, click Save to apply the configuration.

Use with AXIS Rule System

To utilize the Delay Complete event from Missing Feature ACAP in your AXIS camera’s rule system, follow these steps:

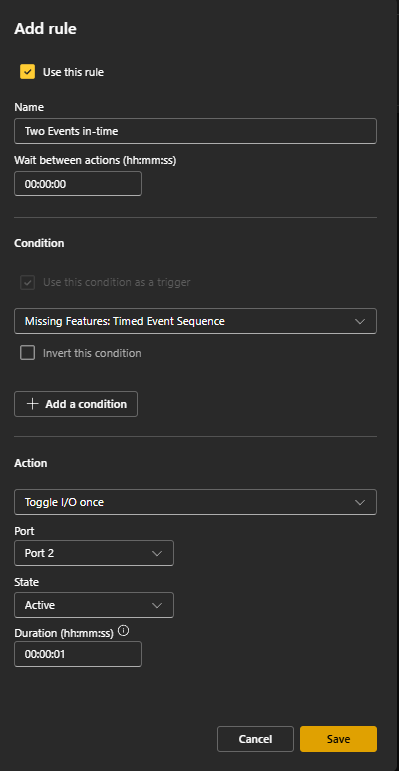

Add a New Rule
- In the AXIS camera’s web interface, go to System > Events > Rules and click Add Rule.
Specify the Rule Name
- Give your rule a descriptive name, for example, Two Events in-time.
Set the Condition
- From the dropdown, select Missing Features: Timed Event Sequence.
Configure the Action
- Choose Toggle I/O once (or any other desired action).
- Select the Port.
- Set the State.
- Set the Duration.
Save the Rule
- Click Save to apply your settings.
